working principal

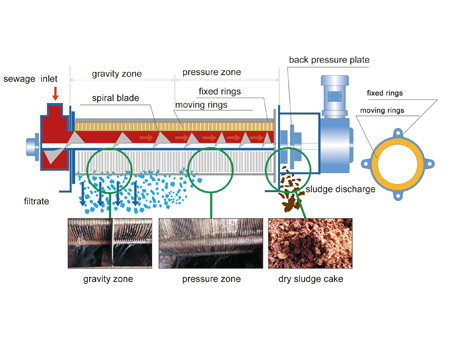

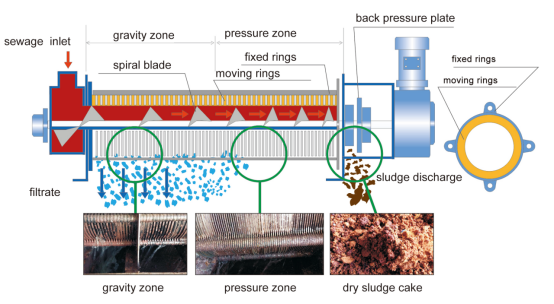

The conditioned sludge flows into the filter zones from the flocculation tank and is pushed forward to the discharging end. With the gaps between the thread of the shaft is getting even narrower, the pressure on the sludge is getting higher and higher. Then the water is separated from the sludge and flows out from the gaps between the moving rings and fixed rings. The movement of the moving rings will clean the gaps between moving and fixed rings and prevent the machine from blockage. The filtered sludge cakes will be pushed forward by the shaft and finally discharged from the end.
Product advantage
Configurating exclusive spiral plate for pre-concentration and better for treating low concentration sludge.
Moving and fixed plates substituted filter, self cleaning, no clogging, easy treatment of oily sludge
Low speed operation, no noise, low energy consumption, only 1/8 of the belt type machine, 1/20 of the centrifuge
Reduce the cost of infrastructure investment, improve the results of treatment
Fully automatic control, simple operation and management
Type 型号 | DS Standard Capacity DS标准处理量 | Sludge treatment 污泥处理量 | ||||
10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||
HLDS131 | 6～10Kg/h | ～1m3/h | ～0.5m3/h | ～0.4m3/h | ～0.3m3/h | ～0.28m3/h |
HLDS132 | 12～20Kg/h | ～2m3/h | ～1m3/h | ～0.8m3/h | ～0.6m3/h | ～0.56m3/h |
HLDS133 | 18～30Kg/h | ～3m3/h | ～1.5m3/h | ～1.2m3/h | ～0.9m3/h | ～0.84m3/h |
HLDS201 | 9～15Kg/h | ～1.5m3/h | ～0.75m3/h | ～0.6m3/h | ～0.5m3/h | ～0.4m3/h |
HLDS202 | 18～30Kg/h | ～3m3/h | ～1.5m3/h | ～1.2m3/h | ～1m3/h | ～0.8m3/h |
HLDS203 | 27～45Kg/h | ～4.5m3/h | ～2.25m3/h | ～1.8m3/h | ～1.5m3/h | ～1.2m3/h |
HLDS301 | 30～50Kg/h | ～5m3/h | ～2.5m3/h | ～2m3/h | ～1.5m3/h | ～1.4m3/h |
HLDS302 | 60～100Kg/h | ～10m3/h | ～5m3/h | ～4m3/h | ～3m3/h | ～2.8m3/h |
HLDS303 | 90～150Kg/h | ～15m3/h | ～7.5m3/h | ～6m3/h | ～4.5m3/h | ～4.2m3/h |
HLDS304 | 120～200Kg/h | ～20m3/h | ～10m3/h | ～8m3/h | ～6m3/h | ～5.6m3/h |
HLDS401 | 90～150Kg/h | ～13m3/h | ～6.5m3/h | ～5m3/h | ～4m3/h | ～3.2m3/h |
HLDS402 | 180～300Kg/h | ～26m3/h | ～13m3/h | ～10m3/h | ～8m3/h | ～6.4m3/h |
HLDS403 | 270～450Kg/h | ～39m3/h | ～19.5m3/h | ～15m3/h | ～12m3/h | ～9.6m3/h |
HLDS404 | 360～600Kg/h | ～52m3/h | ～26m3/h | ～20m3/h | ～16m3/h | ～12.8m3/h |
Type 型号 | DN 主体规格 | Discharge Hight （mm） 泥饼排出口离地面距离 | Dimension 外形尺寸 | N.W 净重 | Weight 运行重量 | ||
长L | 宽W | 高H | |||||
HLDS131 | Φ130×1 | 250 | 1860 | 740 | 1075 | 250kg | 395kg |
HLDS132 | Φ130×2 | 250 | 1960 | 870 | 1075 | 350Kg | 595Kg |
HLDS133 | Φ130×3 | 250 | 1960 | 920 | 1075 | 450Kg | 795Kg |
HLDS201 | Φ210×1 | 350 | 2650 | 750 | 1375 | 420kg | 540kg |
HLDS202 | Φ210×2 | 350 | 2650 | 940 | 1375 | 550kg | 660kg |
HLDS203 | Φ210×3 | 350 | 2650 | 1190 | 1375 | 700kg | 1010kg |
HLDS301 | Φ300×1 | 530 | 3440 | 940 | 1825 | 900kg | 1300kg |
HLDS302 | Φ300×2 | 530 | 3640 | 1260 | 1825 | 1350kg | 2000kg |
HLDS303 | Φ300×3 | 530 | 3900 | 1620 | 1825 | 1900kg | 2700kg |
HLDS304 | Φ300×4 | 530 | 3900 | 2040 | 1825 | 2500kg | 3600kg |
HLDS401 | Φ350×1 | 570 | 4350 | 1020 | 2160 | 2200kg | 4200kg |
HLDS402 | Φ350×2 | 570 | 4350 | 1550 | 2160 | 3500kg | 6000kg |
HLDS403 | Φ350×3 | 570 | 4570 | 2100 | 2160 | 5500kg | 8000kg |
HLDS404 | Φ350×4 | 570 | 4570 | 2650 | 2160 | 7000kg | 9500kg |
Technical Support：YOUWEI Team
